Turbo Actuator for VW Golf Mk6 2.0 Litre TSi Engines with IHI Turbo

The Turbo Actuator for VW Golf Mk6 2.0 Litre TSi Engines with IHI Turbo is a vehicle-specific upgrade from Forge Motorsport, engineered to provide accurate, dependable boost control as a direct performance replacement for the factory actuator. This listing is intended for Golf GTI and Golf R MK6 applications; check the fitment and technical notes below before ordering.

Rather than using generic application text, the specification below is based on the manufacturer information supplied for this product. Where engine codes, model years, factory equipment or tuning requirements are stated, these should be treated as part of the fitment requirements.

Vehicle fitment

• Make: Volkswagen
• Model: Golf GTI and Golf R
• Chassis / variant: MK6

Product details

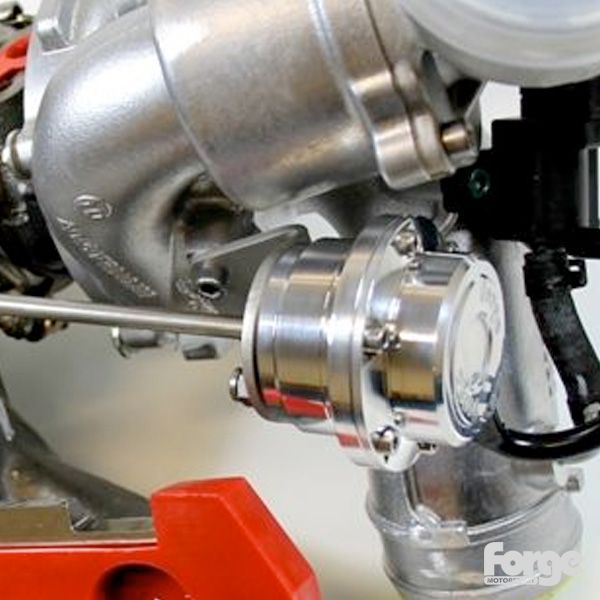

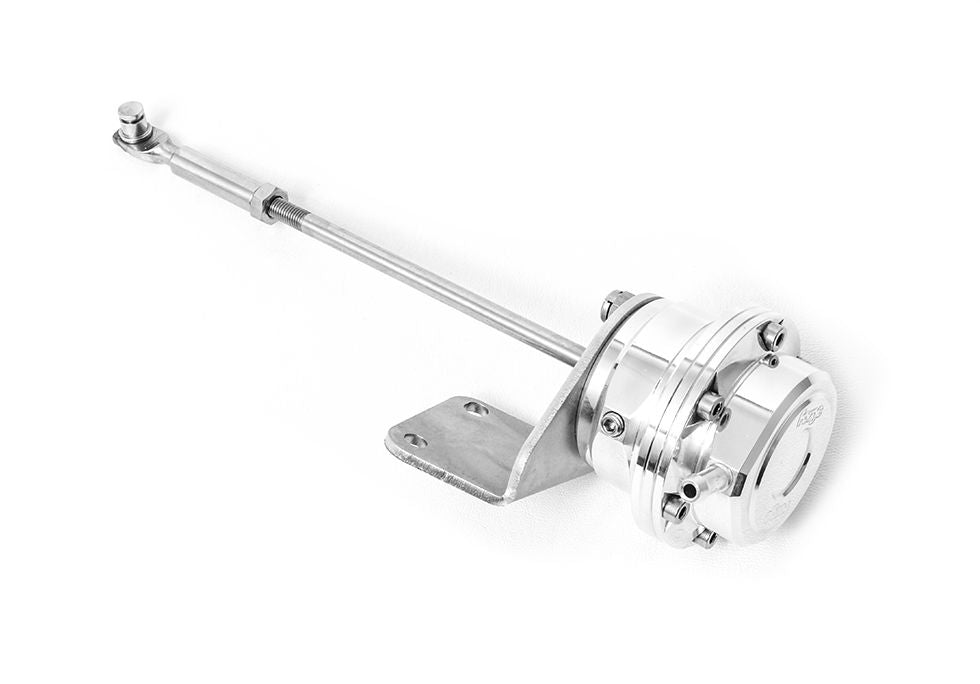

A replacement turbo actuator for vehicles based on the MK6 Golf chassis with the 2.0 TSi engine, fitted with the IHI turbo. However, this unit will NOT work on IHI turbos that have the actuator welded to the turbine housing as well as the rod end permanently riveted to the flapper arm. This unit will only work on turbos that have the actuator bolted to the turbine housing and the removable arm. The OEM turbo/actuator will need to be inspected first to determine if this unit will work.

Forge Motorsport were one of the first company’s in the world to design and manufacture the billet two-piece replacement aluminium turbo actuator. Originally for the Cosworth, Renault 5 GT turbo, and Lancia Integral turbos, we soon developed the largest and most diverse range of actuator replacements.

• Choice of spring pressures to suit your car
• Manufactured from 6026 grade aluminium
• Vehicle specific
• Turbo specific
• Built to order
• Machined and hand polished in the UK
• Choice of piston or diaphragm operation on most actuators
• Nomex reinforced flurosilicone diaphragms
• Laser cut stainless steel brackets (where applicable)
• Tuning and service kits available
• Made in England
• Lifetime warranty*

Please Note:

The pressure figures listed in the drop-down menu above are minimum regulated pressure figures. If you are unsure, please don't hesitate to call us on 01452 380999.

When you fit a Forge turbo actuator you will be able to fine tune and manage your specific boost requirements, this will allow for improved response and better control. This product is built with a predetermined actuator spring suitable for, or slightly above factory boost levels. The actuator can be assembled with a stronger spring upon request for tuned vehicles, and where a higher boost level is required. Please contact us directly concerning this process. It is designed and built with the intention of increasing the boost output of a turbocharged system. We cannot guarantee compatibility with all applications, nor the ability to increase the boost output beyond a level that is within the parameters set by the engine-management-system of the given vehicle at the time of installation, whether that system is factory or aftermarket

Diaphragm sealed internals are the default selection for this actuator product but customers now have the option of piston sealed internals. Unique to Forge Motorsport, this innovation offers equal performance to the diaphragm type and low

Vehicle compatibility

• Make: Volkswagen
• Model: Golf GTI and Golf R
• Chassis / generation: MK6

Ordering & fitment

Please use the vehicle application, engine code and specification information above to confirm compatibility. If your vehicle has been modified or differs from the stated application, confirm fitment before ordering.

We understand it can be a bit confusing to figure out if a part will work for your car. No worries! Just shoot us a message with your question, and our friendly sales team will then be in touch to confirm if this part is the correct for your vehicle!
