THE B10 LOTUS EMIRA- CAR SEAT

With its contemporary design the B10 seat is stylish, lightweight, rigid and compact. Based on our popular B6 race shape, modified to be more convenient for daily driving.

The B6 has always been a great seat for those that liked a low head position with an enveloping and ultra-supportive shape, but often the race type belt holes were awkward when trying to feed a factory three-point seat belt through.

The B10’s cut away sides allow convenient use of the stock belts with the added benefit that getting in and out of the seat is also easier. However, we have been careful to make sure that the support of the driver is not compromised.

The front of the seat kicks up a little more than the B6, which not only aids drivers with longer legs but also helps if the seat were to be angled to a more upright position.

A more upright seat allows a comfortable arm length in saloon cars, where the steering column cannot be extended, or lengthened towards the driver. The headrest height has been raised over the B6 seat so that a driver with along torso does not run out of headrest support.

The B10 has been given a modern fresh look and although its highly technical laminate is rigid and tough, it weighs only 4.5 kg for the standard B10.

The B10 is also available in the larger B10XL size, weighing approx. 5.4kg

The B10 Lotus Emira package comes complete with a Dinamica® suede and leather custom Emira designed panels weighing around 1kg.

The B10 and B10XL can also use a full six-point race harness and is Hans compatible for those with a serious track car.

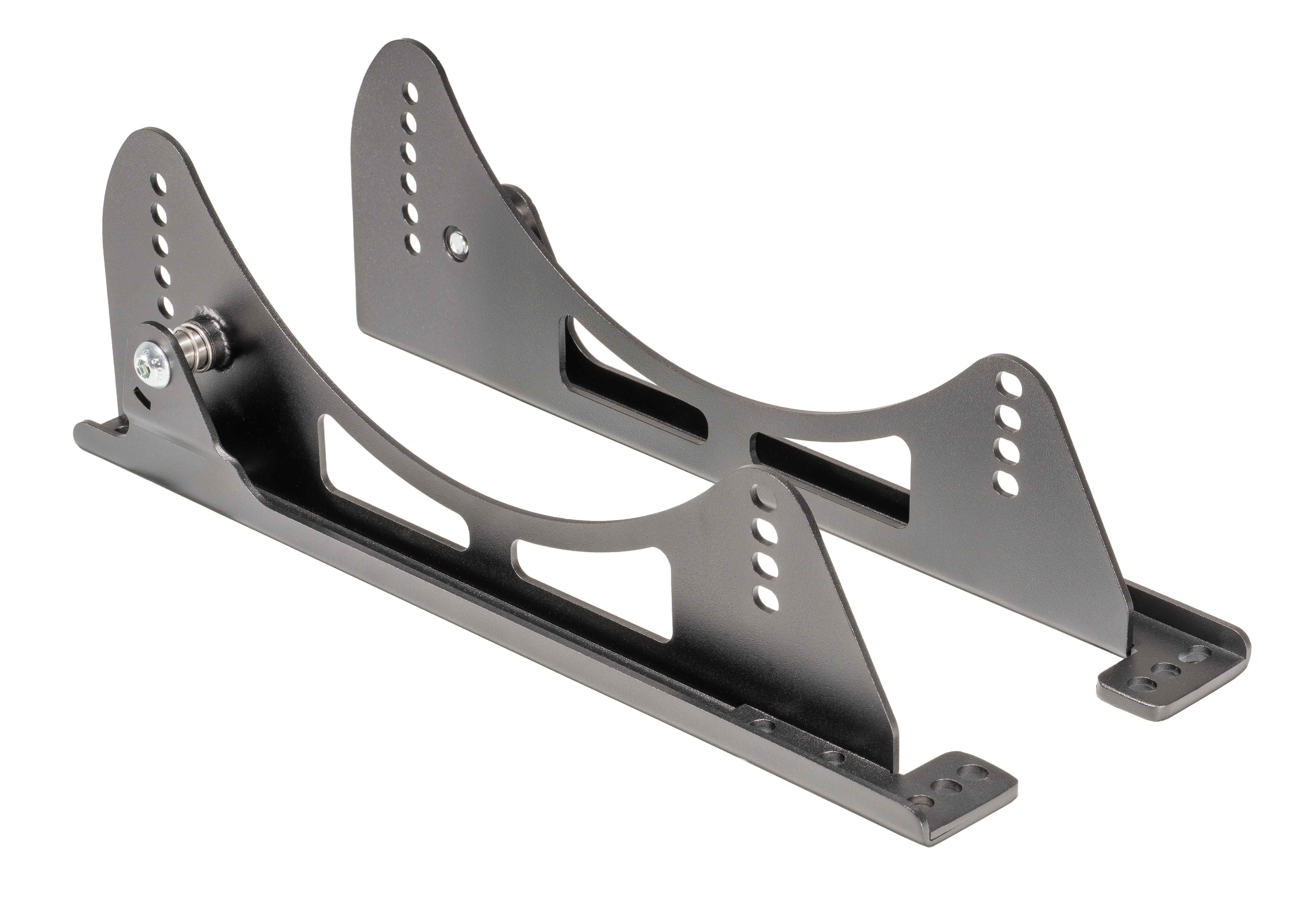

Package also includes our custom designed Lotus Emira brackets and runners weighing

KEY FEATURES

• Saloon car seating angle.
• B6 based shape with swept away sides for easy vehicle access and road seat belts.
• Strength and rigidity of a twin skin moulding.
• Available in Carbon/GRP finish
• B10 weighing 4.5kg and B10XL weighing 5.4kg, weight can vary by 10%.
• Driver is lowered compared to standard saloon seats.
• B10 standard suits drivers up to 100 kg and around a 36-inch jeans waist size.
• Compatible with road seat belts or race harness and a 20° Hans device (5 or 6 point race harness recommended).
• Stainless steel side mounting points.

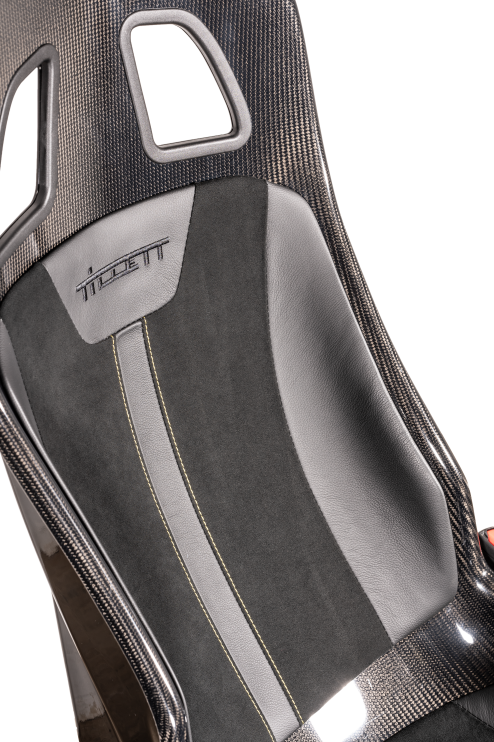

• Dinamica® covered headrest panel included as standard.

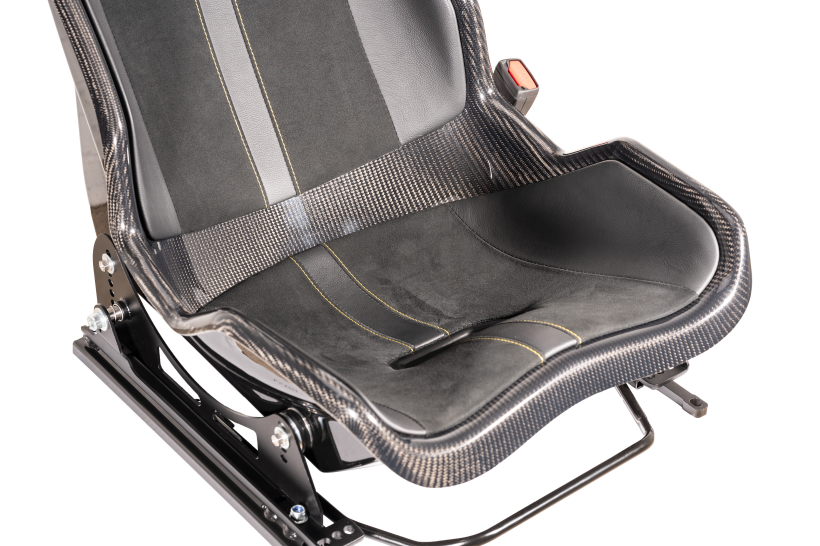

• Option of cushion and back panels covered in Dinamica® suede.
• Body mirroring shape is comfortable without padding.
• A great option for open top cars and harsh environments.
• Compatible with Tillett 2° side mount brackets.
• Designed and manufactured in the United Kingdom.

INCLUDED IN PACKAGE

• B10 or B10XL Carbon/GRP Tillett car seat.
• Special designed Lotus Emira panel set.

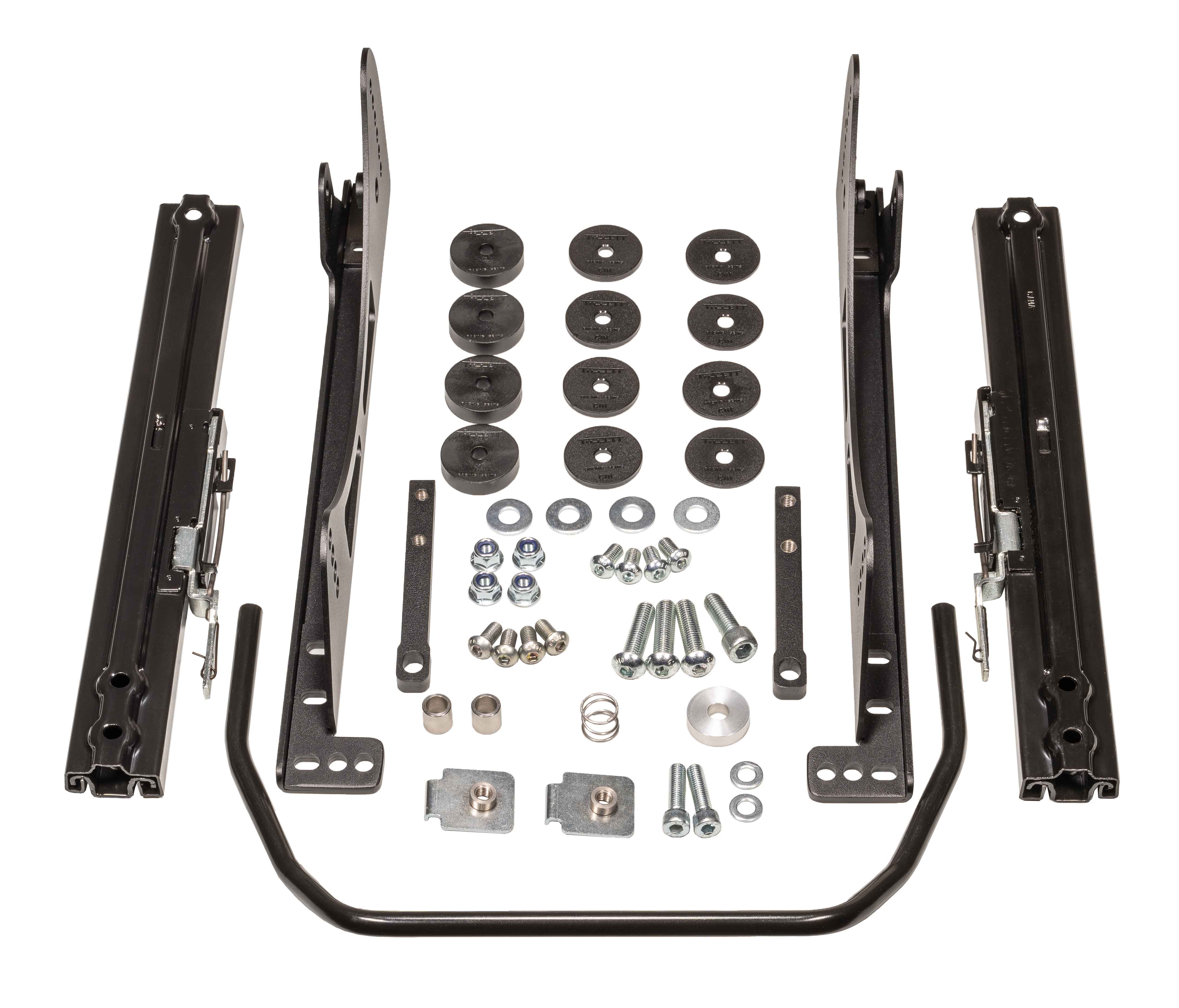

• Lotus Emira specific TEMIRA01 brackets and runners.
