Introducing our latest advancement for BMW B58 models: the front mount chargecooler radiator upgrade, meticulously crafted for both fast-road enthusiasts and track aficionados.

The Challenge The performance of chargecooled engines hinges on the coolant temperature within the system. Ensuring it stays cool for extended periods is crucial, especially in tuned applications where the standard system may struggle to maintain the ideal temperature. To consistently achieve a lower running temperature, the key lies in enhancing the system's capacity and its cooling efficiency.

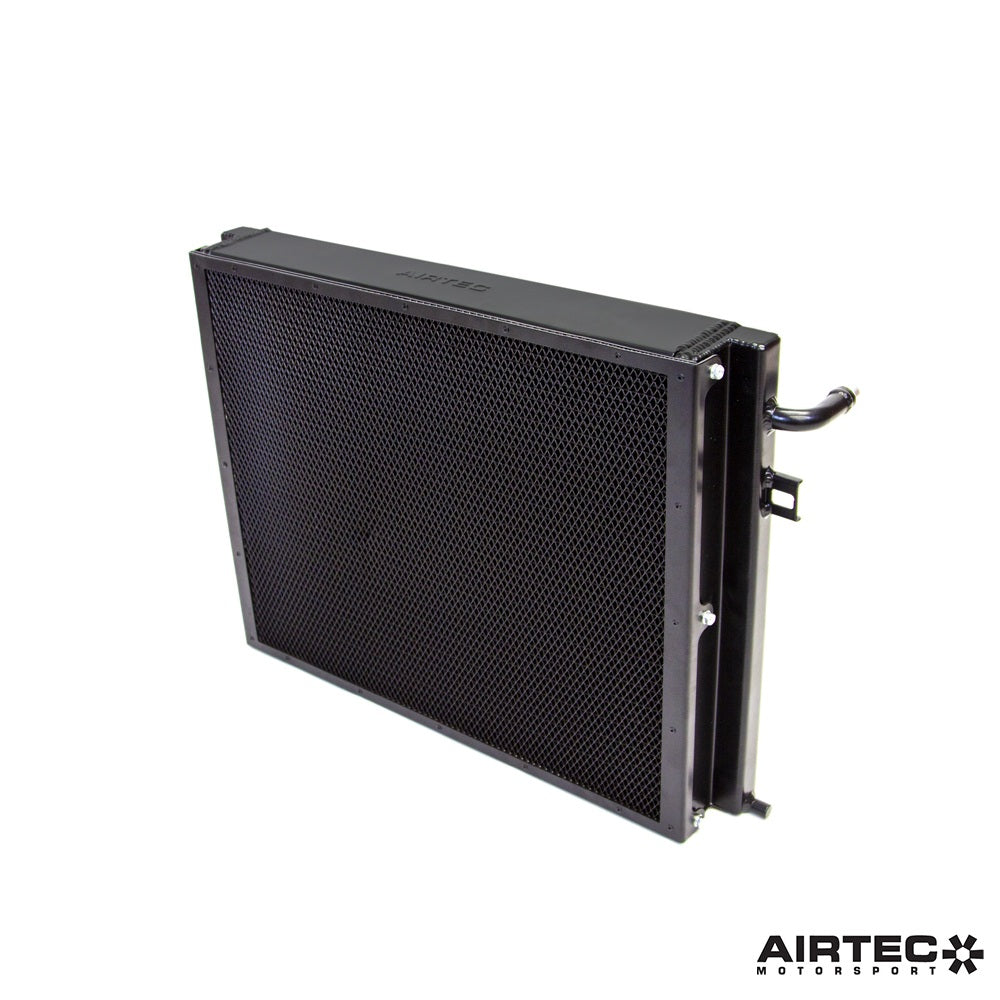

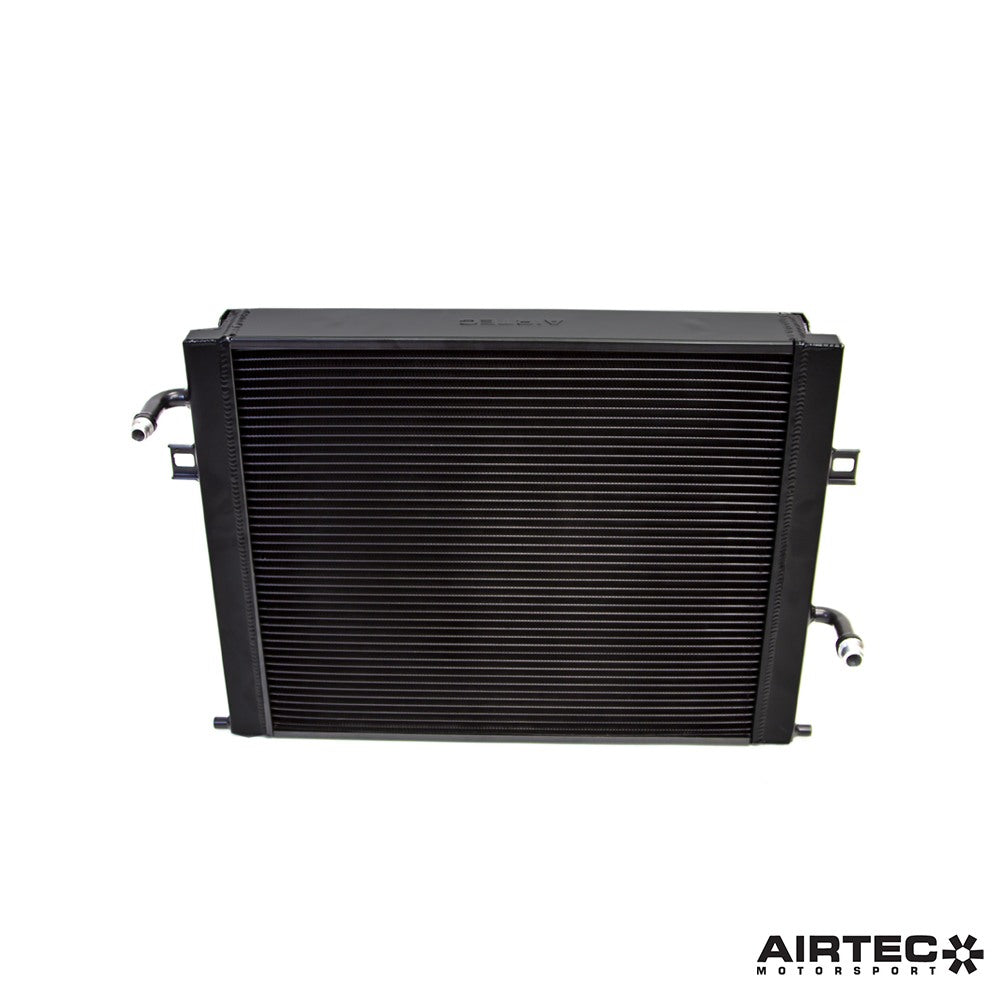

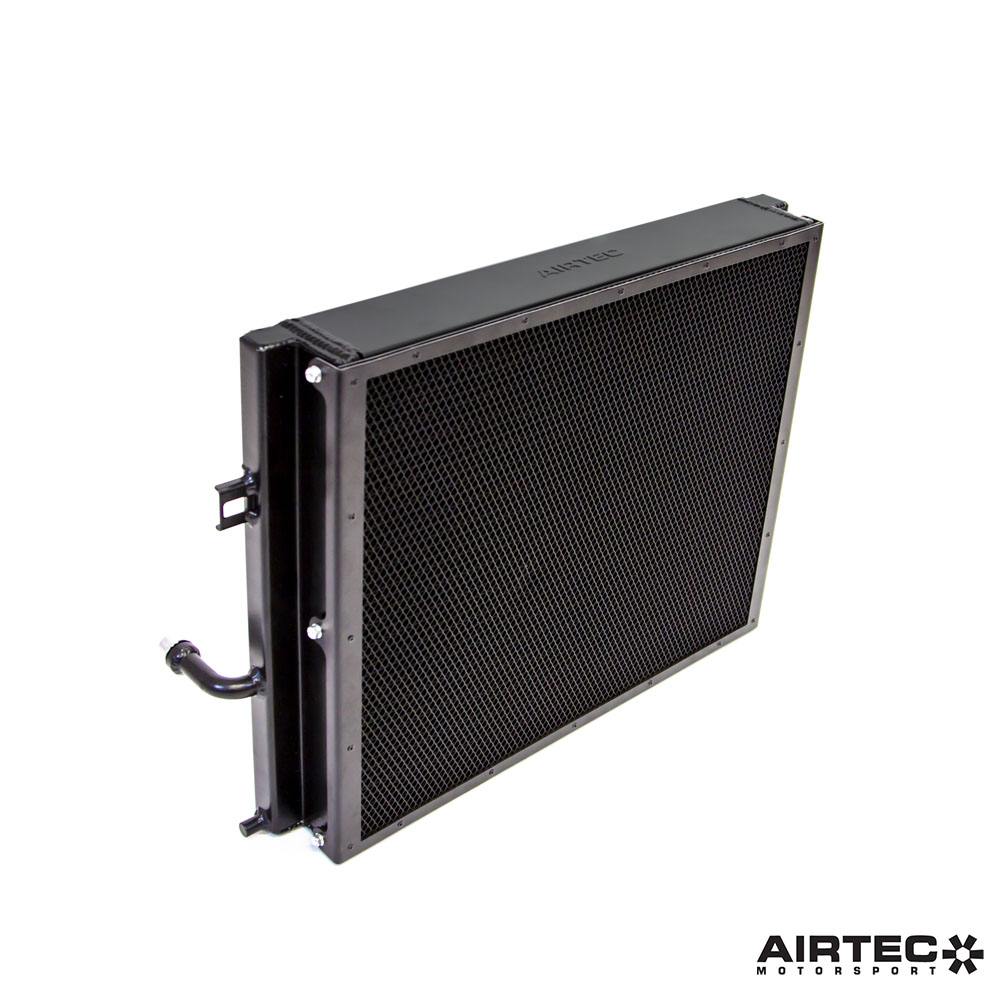

The Solution AIRTEC Motorsport tackles this challenge by innovatively extending the original setup, working within the confined space behind the bumper. Instead of making it wider or taller, we introduced a core that's nearly 60mm thicker, boasting a depth of 90mm. This design allows for a triple pass core, enabling the coolant to circulate through the radiator three times before exiting. The result is an impressive capacity increase to 23.3 litres, a remarkable 203% gain compared to the original 7.7 litres.

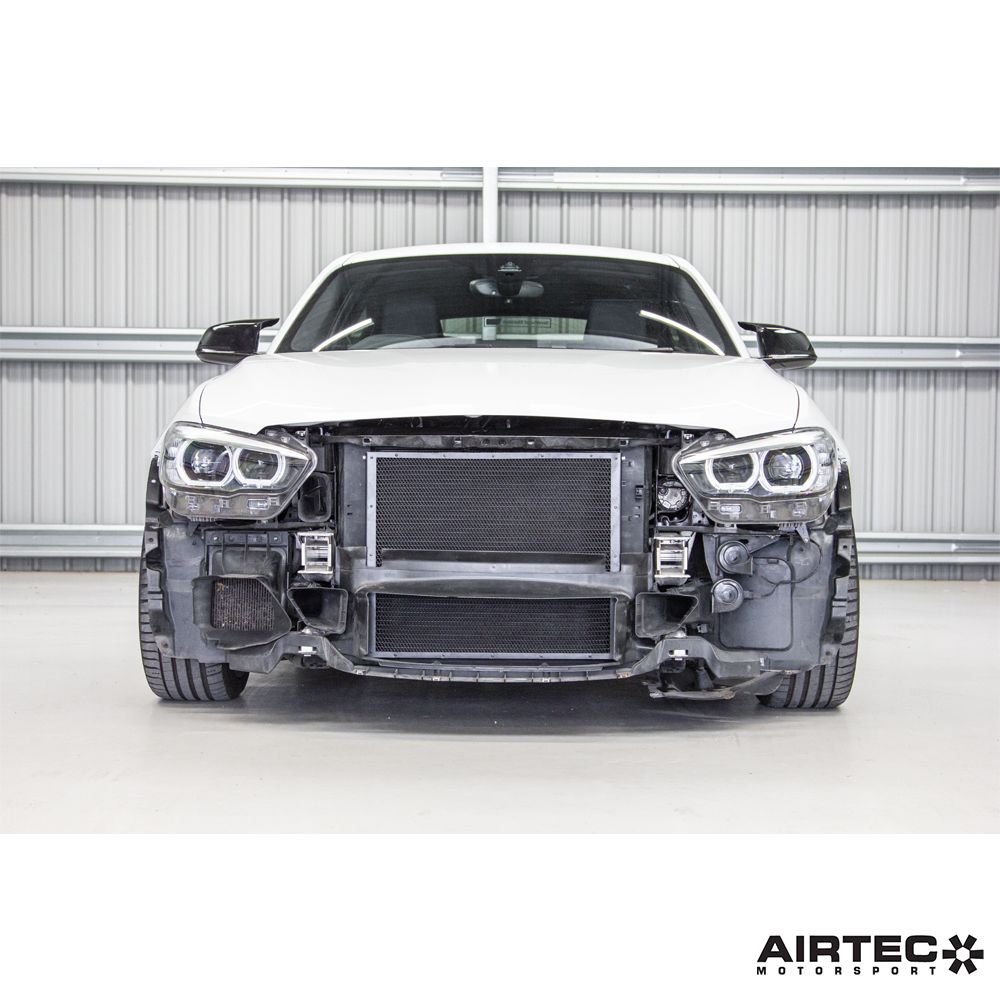

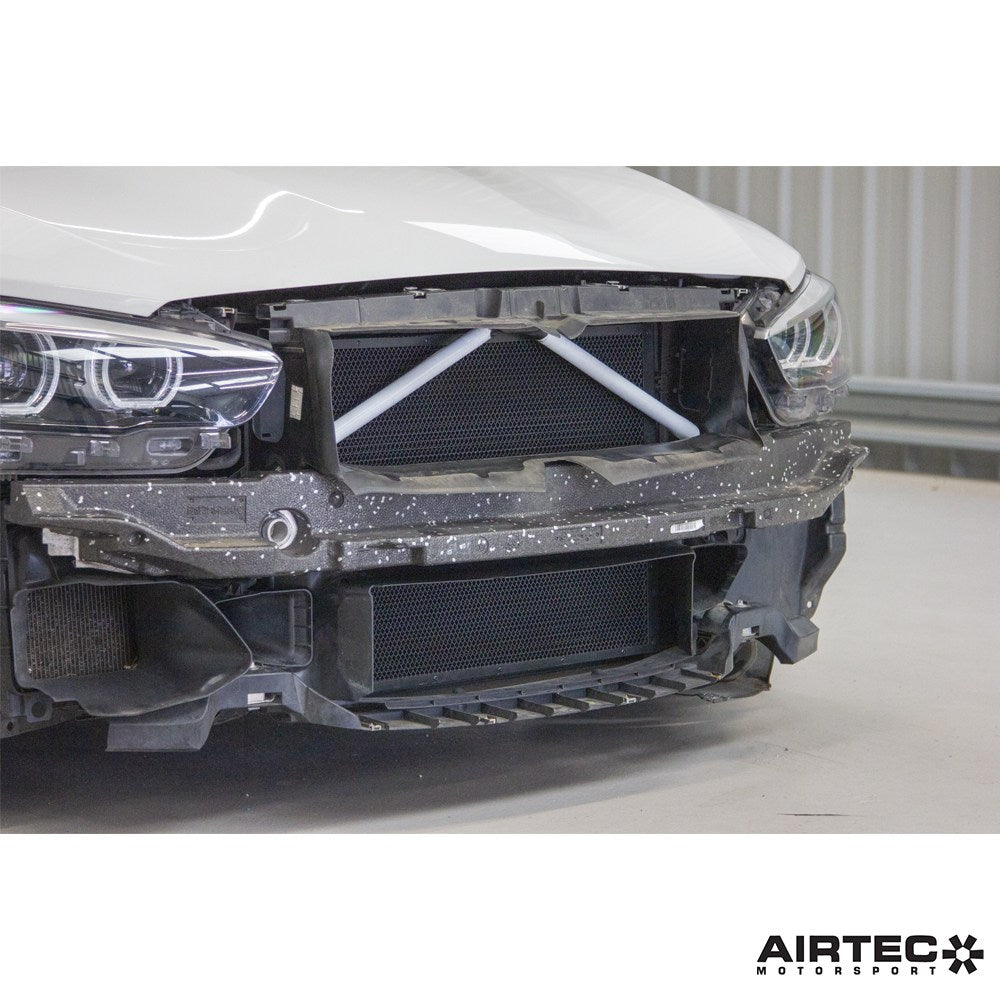

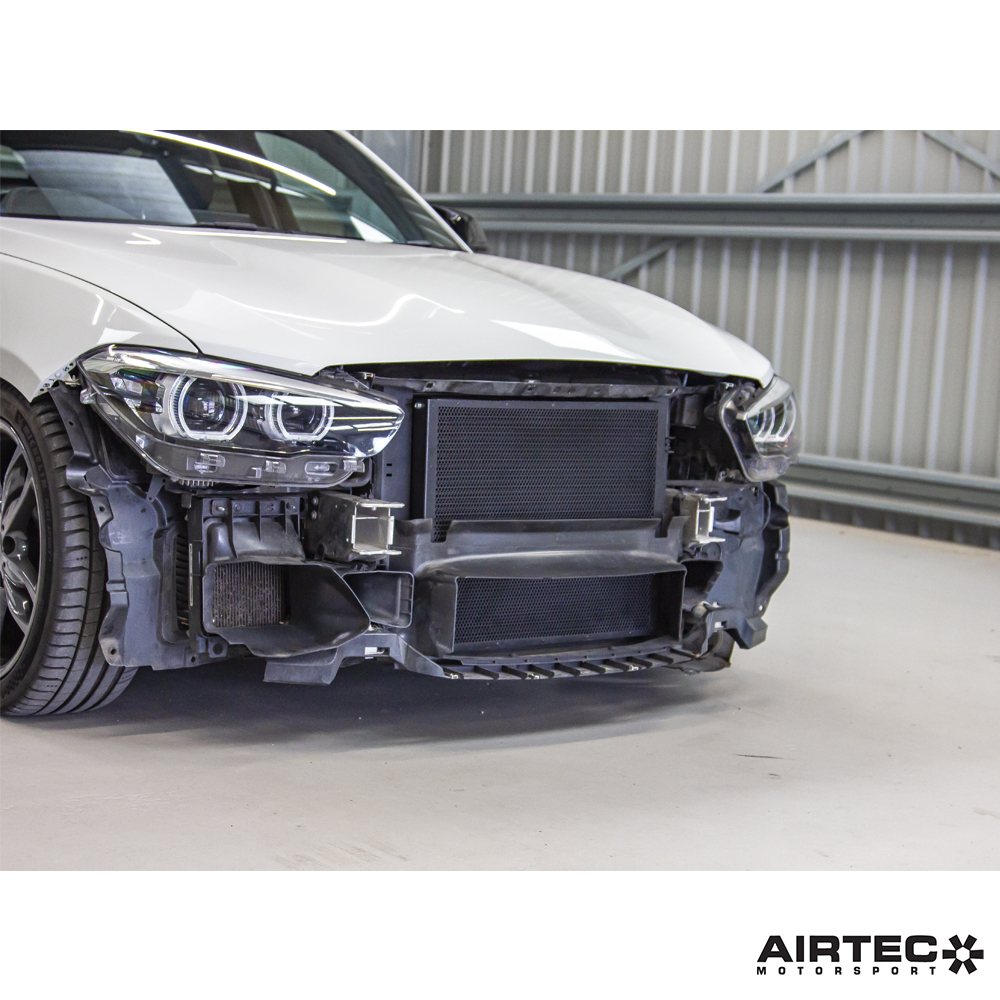

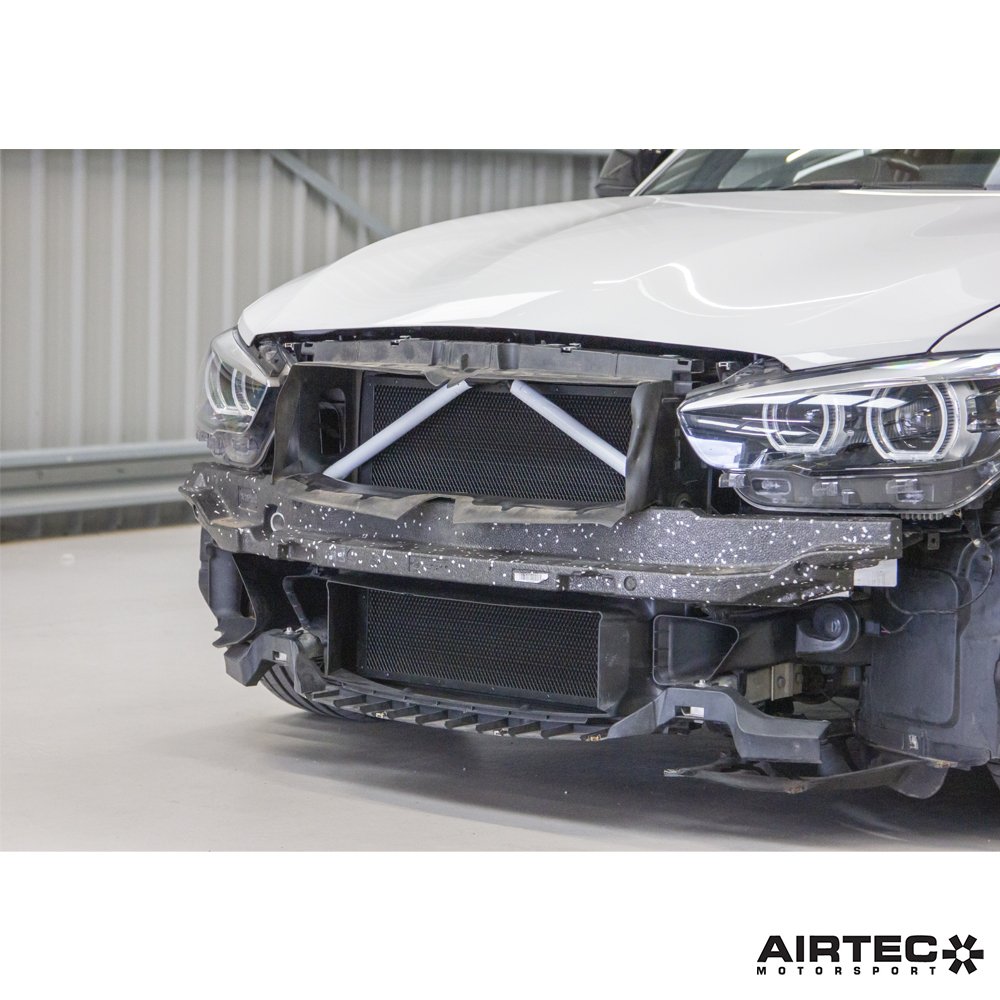

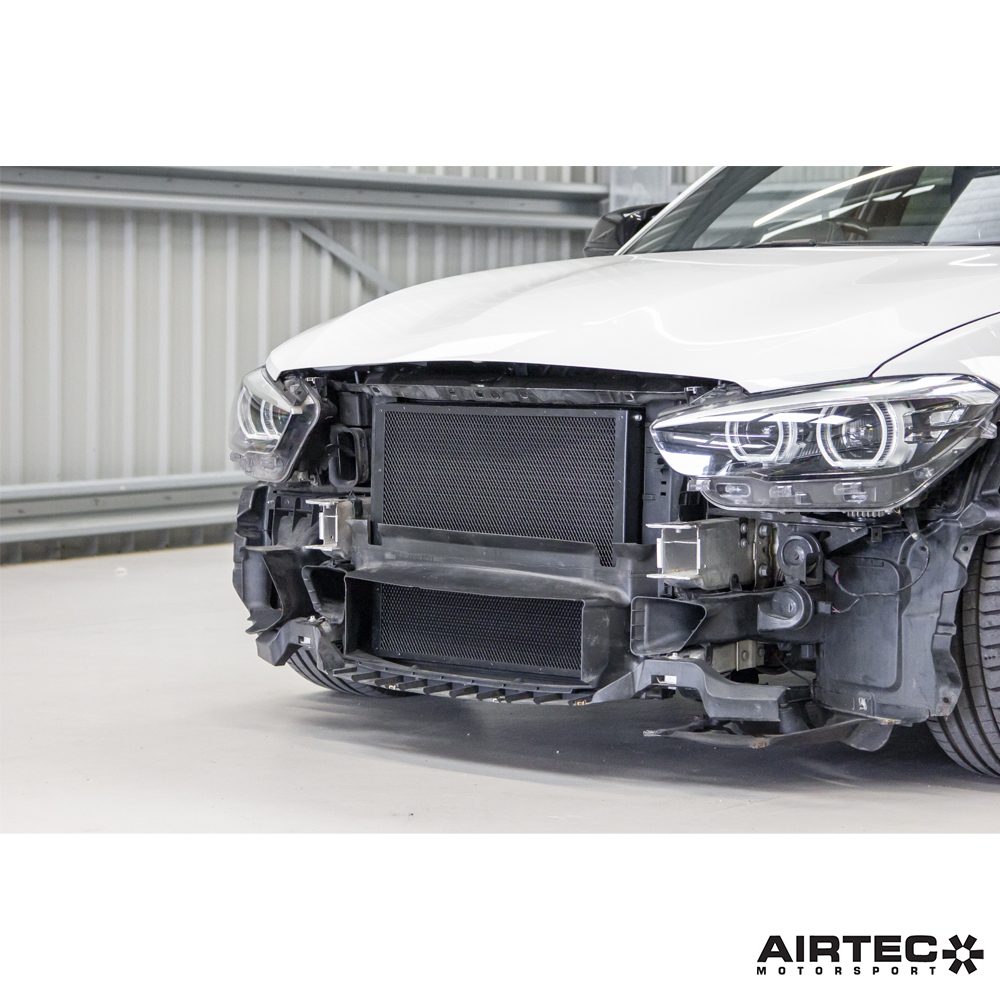

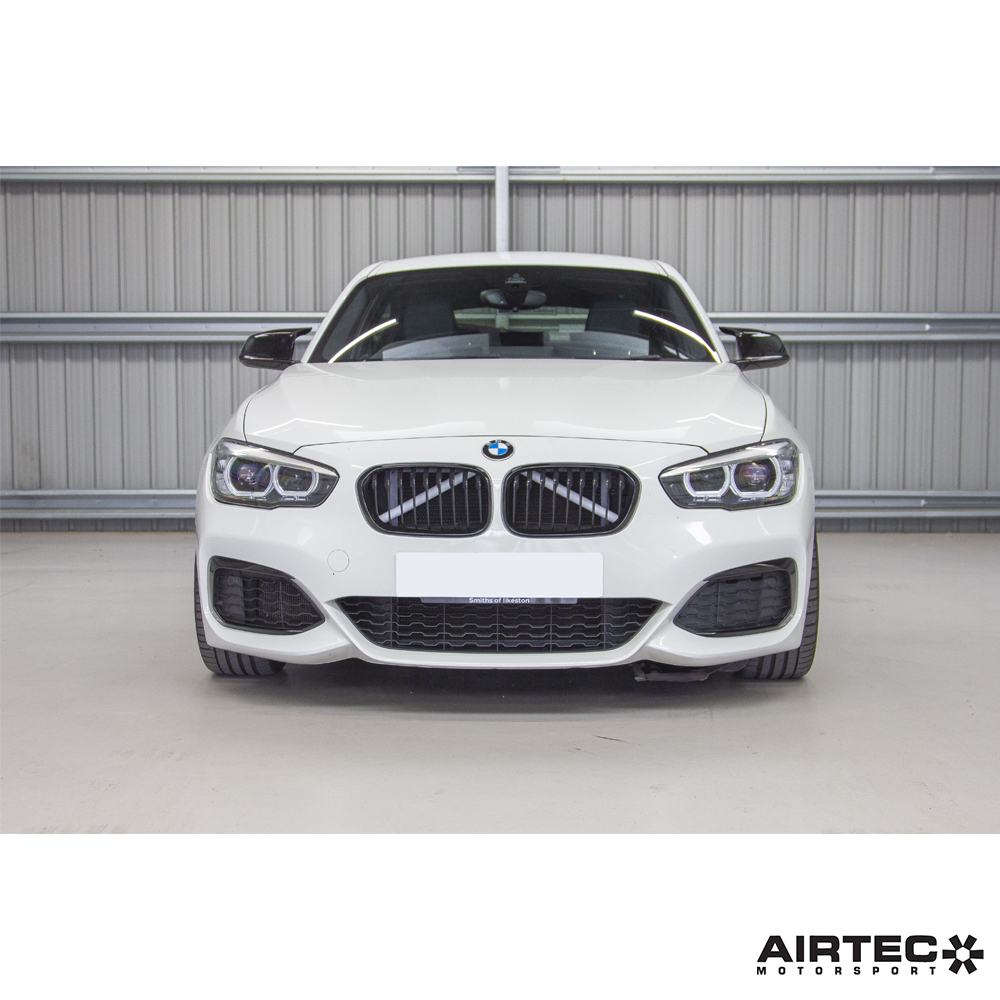

Despite the substantial boost in cooling capacity, our radiator seamlessly fits behind the bumper without the need for modifications. Utilizing the OEM mounts and original coolant connectors, installation is a breeze. To safeguard the larger core at the car's front, we've included a stone guard for added protection.

Finished in a high-quality powder-coated black finish, our comprehensive fitting kit comes with all the necessary fixtures and a detailed instruction guide, ensuring a smooth installation process. Elevate your BMW B58's cooling performance with AIRTEC Motorsport's cutting-edge chargecooler radiator upgrade.

Dimensions:
OEM chargecooler radiator:
Width: 576mm
Height: 495mm
Depth: 27mm
Capacity: 7.7 litres

AIRTEC Motorsport chargecooler radiator:
Width: 550mm
Height: 470mm
Depth: 90mm
Capacity: 23.3 litres

Fitment:
2015 to 2019 – BMW 120i/125i/M140i (F20/F21 LCI)
2016 to 2019 – BMW 220i/230i/M240i (F22/F23 LCI)
2014 to 2019 – BMW 320i/330i/340i (F30/F31/F34/F35 LCI)
2016 to 2019 – BMW 420i/430i/440i (F32/F33/F36 LCI)

Features:

• Specifically designed for the B58 platform
• 203% increase in overall capacity in comparison to original
• Triple-pass design for improved cooling
• Huge increase in cooling ability

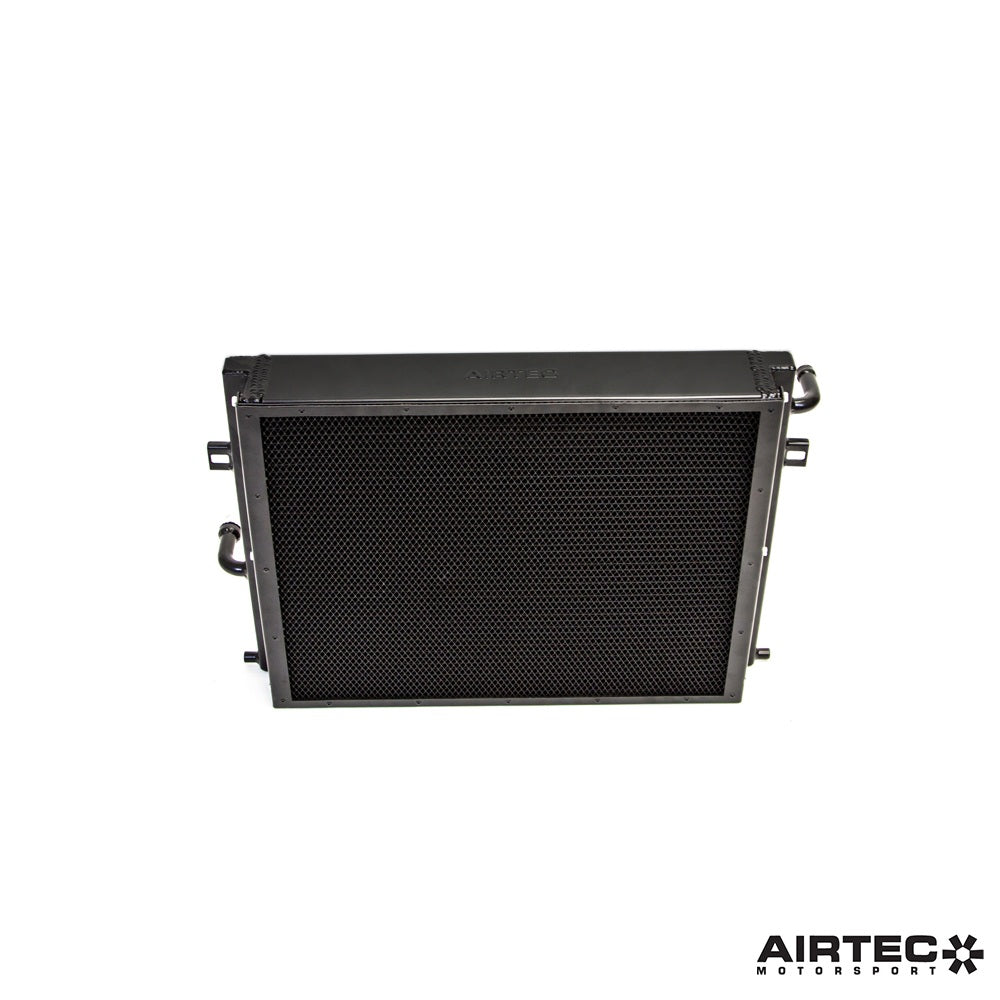

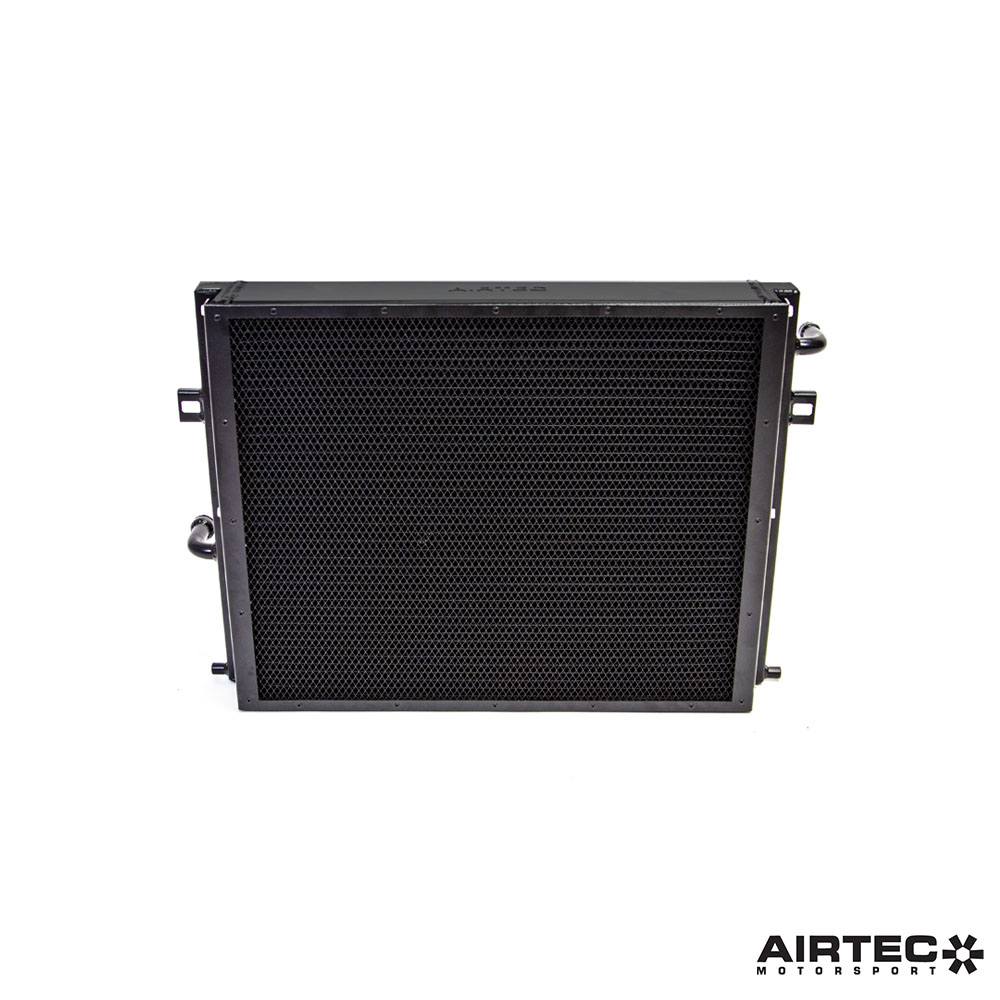

• Protective stone guard to shield the core
• Powder coated black finish
• Direct fit with no cutting or trimming
• Includes fittings and fixtures
• Detailed fitting guide included
