Why the BMW F8x rear differential mount deserves attention
The F87 M2, F80 M3 and F82/F83 M4 put serious torque through the rear differential. BMW's factory subframe provides two rear mounting positions, but the standard arrangement uses a single offset rear bush. Powerflex's PFR5-4030 bracket uses the second position to create a dual rear mounting arrangement.
On a standard road car the original rubber mounting is designed to balance drivetrain control with noise, vibration and harshness. As mileage, heat cycles, launches, track use and repeated on-off throttle loads accumulate, the rubber can soften or deteriorate. Powerflex specifically identifies the F8x rear differential bushes as a known high-load area and reports that failures can be seen around 30,000 to 40,000 miles in harder-used cars.
What does the rear differential bush actually do?
The differential transfers torque from the propshaft to the rear driveshafts while being mounted to the rear subframe. Its bushes allow controlled compliance while locating the differential. Under acceleration, lift-off and gear changes the differential housing reacts against these mounts.
Torque reaction loads the differential mounts as power is transferred to the rear wheels.
Changing from drive to overrun reverses load through the driveline and moves the differential in the opposite direction.
Rapid torque changes can expose excessive compliance in tired mounting bushes.
What is different about the OEM F8x arrangement?
The F8x tubular rear subframe has provision for two rear differential mounting bushes, but BMW uses a single offset bush in the standard rear bracket. Powerflex describes this as creating a pivot point under torque loading, particularly when the four bushes in the front differential mounting bracket have also softened.
That does not mean every standard bush is defective. Rubber compliance is part of the factory NVH strategy. The issue is that a single rear mounting point has to absorb repeated torsional and directional loads, which become more demanding on tuned, launched or frequently tracked cars.
Common signs of worn differential mounting bushes
- A clunk from the rear when taking up drive or changing quickly between acceleration and lift-off.
- More noticeable drivetrain movement during hard gear changes.
- An unsettled sensation from the rear axle as load is applied and removed.
- Visible cracking, tearing or excessive movement in the rubber mounting.
- Wheel hop or inconsistent power delivery that warrants investigation of the differential and surrounding mounts.
These symptoms are not unique to differential bushes. Propshaft components, driveshafts, subframe bushes, suspension joints and other drivetrain mounts can produce similar behaviour. Inspection should come before parts replacement.
What does the Powerflex PFR5-4030 dual differential bracket do?

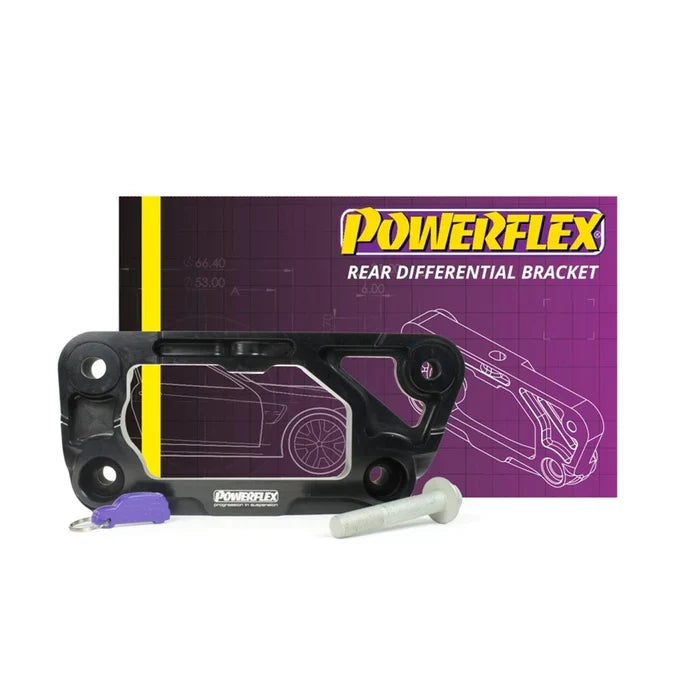

The Powerflex PFR5-4030 dual-mount rear differential bracket is CNC-machined from 6082 high-tensile aluminium and uses the second factory mounting position in the F8x rear subframe. Adding a second rear bush supports the differential at two rear points instead of relying on the original single offset mounting point.
The aim is to reduce differential rotation and drivetrain movement under load. Powerflex lists reduced drivetrain movement, more consistent on-off-throttle response, reduced wheel hop and reduced strain on the fitted bushes among the intended benefits.
Which cars does PFR5-4030 fit?
| BMW | Chassis | PFR5-4030 |
|---|---|---|
| M2 | F87 | Yes, manufacturer-listed application |
| M3 | F80 | Yes, manufacturer-listed application |
| M4 | F82 / F83 | Yes, manufacturer-listed application |
| M2 / M3 / M4 | G87 / G80-G83 | No PFR5-4030 fitment should be inferred |
This distinction matters. The PFR5-4026 rear bush has applications on both F8x and G8x cars, but a shared bush does not make the F8x PFR5-4030 bracket a G8x bracket.
F8x versus G8x front differential bushes
For F8x M cars, Powerflex uses PFR5-4025 for the four bushes in the front mounting bracket of the rear differential. G8x cars use the separate PFR5-4024 front mounting reference.
Here, “front” means the front mounting points of the rear differential. It does not mean the front axle differential on an xDrive vehicle.
Which F8x setup should you choose?
| Option | What you get | Best when |
|---|---|---|
| Bracket only | PFR5-4030 bracket, supplied hardware; bushes separate | You already have a defined bush strategy. |
| Bracket + Genuine BMW rear bushes | PFR5-4030 plus two OEM rubber rear bushes | You want the dual rear arrangement while retaining rubber rear bushes. |
| Bracket + front bush set | PFR5-4030 + PFR5-4025 front set; rear bushes separate | You need the front bushes but want to choose the rear bushes independently. |
| Complete polyurethane kit | PFR5-4030 + PFR5-4025 front set + two PFR5-4026 rear bushes | You want a comprehensive polyurethane differential mounting package. |
Road car or track car?
A stiffer mounting arrangement can make the driveline feel more direct, but reducing compliance can also transmit more noise and vibration into the body. That trade-off matters on a daily-driven M2, M3 or M4. Powerflex's Road Series PFR5-4026 uses 80A polyurethane, while the separately specified Black Series PFR5-4026BLK uses a harder 95A material intended for track and motorsport use.
For many fast-road cars the objective is not simply “fit the hardest bush available”. It is to control unwanted movement without creating more NVH than the owner wants to live with.
Can the bracket be fitted without removing the rear subframe?
Powerflex states that PFR5-4030 can be installed without completely removing the subframe. Actual labour depends on the vehicle's condition, existing modifications and which bushes are being replaced at the same time. If the front differential bushes are also being renewed, the scope of work is greater than fitting the rear bracket alone.
Should you replace the front differential bushes at the same time?
If the car has meaningful mileage, hard road use or track history, the front differential bushes should be inspected rather than ignored. Powerflex specifically notes that movement at the single rear mount becomes more significant when the four front bushes have softened. The PFR5-4025 set replaces all four bushes in the original F8x front differential mounting bracket.
Our approach
For an F87 M2, F80 M3 or F82/F83 M4 with rear-end clunking or excessive drivetrain movement, we would inspect the mounts first and then choose the parts around the car's use. A road car, heavily tuned fast-road car and regular track car do not necessarily need the same bush specification.
Shop the correct Powerflex setup
Use our Powerflex collection to compare individual bushes, the PFR5-4030 bracket and complete F8x differential mounting packages.
Frequently asked questions
Does the Powerflex dual differential bracket fit the G87 M2 or G80/G82 M3/M4?
PFR5-4030 is manufacturer-listed for the F87 M2, F80 M3 and F82/F83 M4. Do not infer G8x bracket fitment from the fact that PFR5-4026 rear bushes have applications on both generations.
Does the PFR5-4030 bracket include bushes?
No. The bracket itself is supplied without bushes, allowing different rear-bush combinations. Nineteen72 also offers packages combining the bracket with selected bushes.
How many PFR5-4026 bushes are used with a dual polyurethane rear setup?
Two PFR5-4026 bushes are used across the two rear mounting positions when choosing the dual-polyurethane arrangement.
Will a dual differential mount stop every rear-end clunk?
No. A clunk can have several causes. The differential bushes and mounting arrangement should be inspected alongside the rest of the rear drivetrain and suspension.
Is Powerflex suitable for a road car?
Yes, provided the correct product specification is chosen. Road-oriented and harder track-focused products have different stiffness and NVH characteristics.
